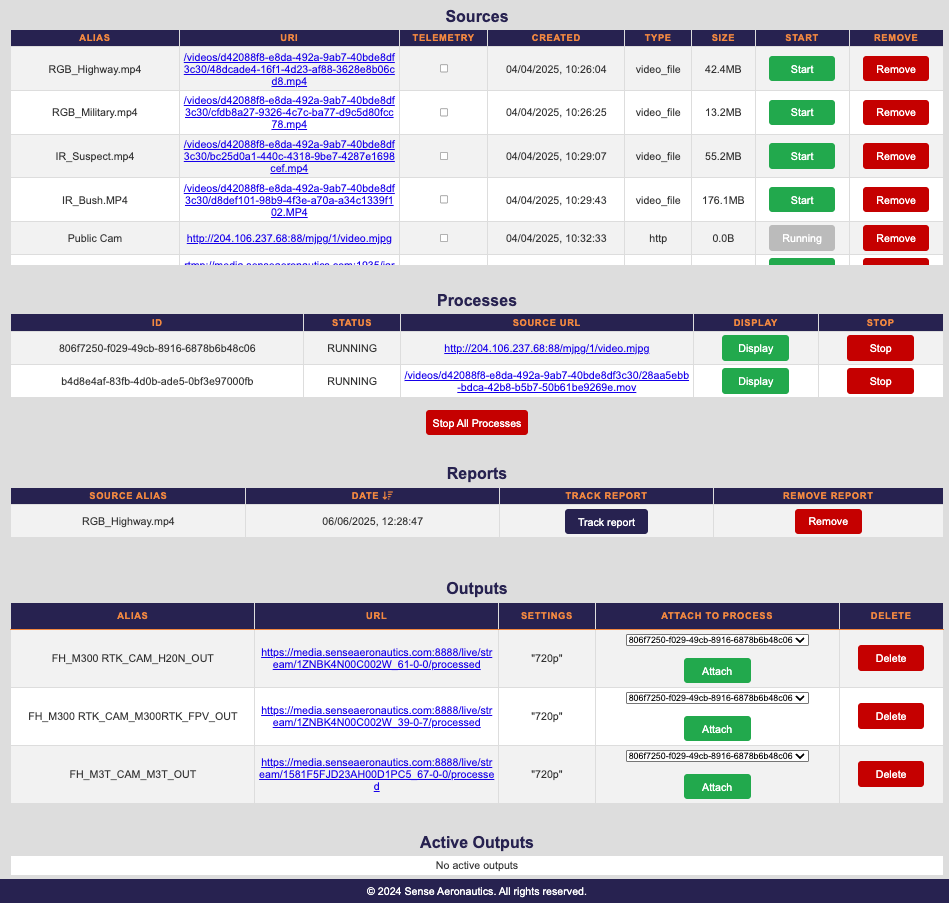

Information page
This page displays information related to the API and API Key, as well as access to all your sources, outputs and processes.
General information
The top of this page includes information about the API (such as version, environment, where the .com corresponds to production and the .dev corresponds to staging, and avilability), and information about your key (such as consumed and remaining minutes or expiration date).
Sources, outputs and processes information
Below that section, you can find a list with all your available sources and ouputs, as added in the setup page, as well as active processes and available reports from previous processes, if any.
To start processing a specific source with Sense Aeronautics' AI, simply click on Start for the desired source. The source may also be deleted by clicking on Remove.
For as long as sources are being processed, they will be listed in the Processes section. You can stop either one process or all your active processes by clicking on the Stop or Stop All Processes respectively.
For any running process, clicking on the Display button next to it will open the Live feed page, where your processed stream is available for quick visualisation. More information below.
Once a process finishes, the corresponding report will be added to the list of available reports, where these are ordered by date. You can either access these report, or delete them at any time. See below for more information on track reports.
Running processes can be 'attached' to registered outputs. For this, select the desired process id on the dropdown and click on 'attach'. Attached outputs are shown at the bottom of the page, under Active outputs.
When a source is attached to an output, the processed video for that processed will automatically be streamed on the corresponding output for as long as the process is active.
When using the integration with FlightHub 2, an output is automatically generated and attached on process start.

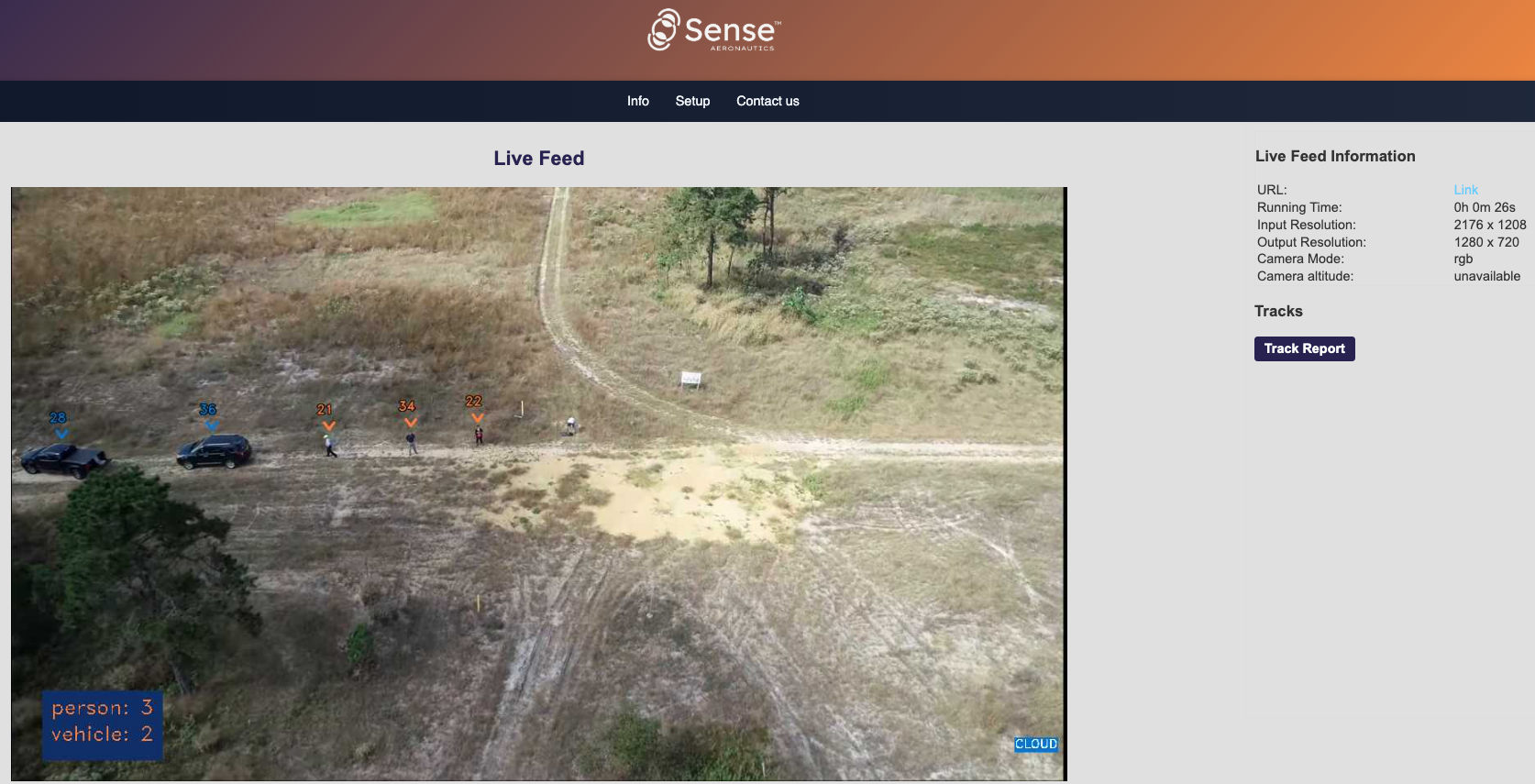

Live feed page
On clicking on the Display button for an active process, the processed video is shown in real time on an embedded player, as shown in the image.
If telemetry is available for the running processed, a map with the location of the targets will also be displayed by the embedded player.
As well as the embedded video and map (if available), the Live Feed page will show a link to a track report for the active process. See below for more information.

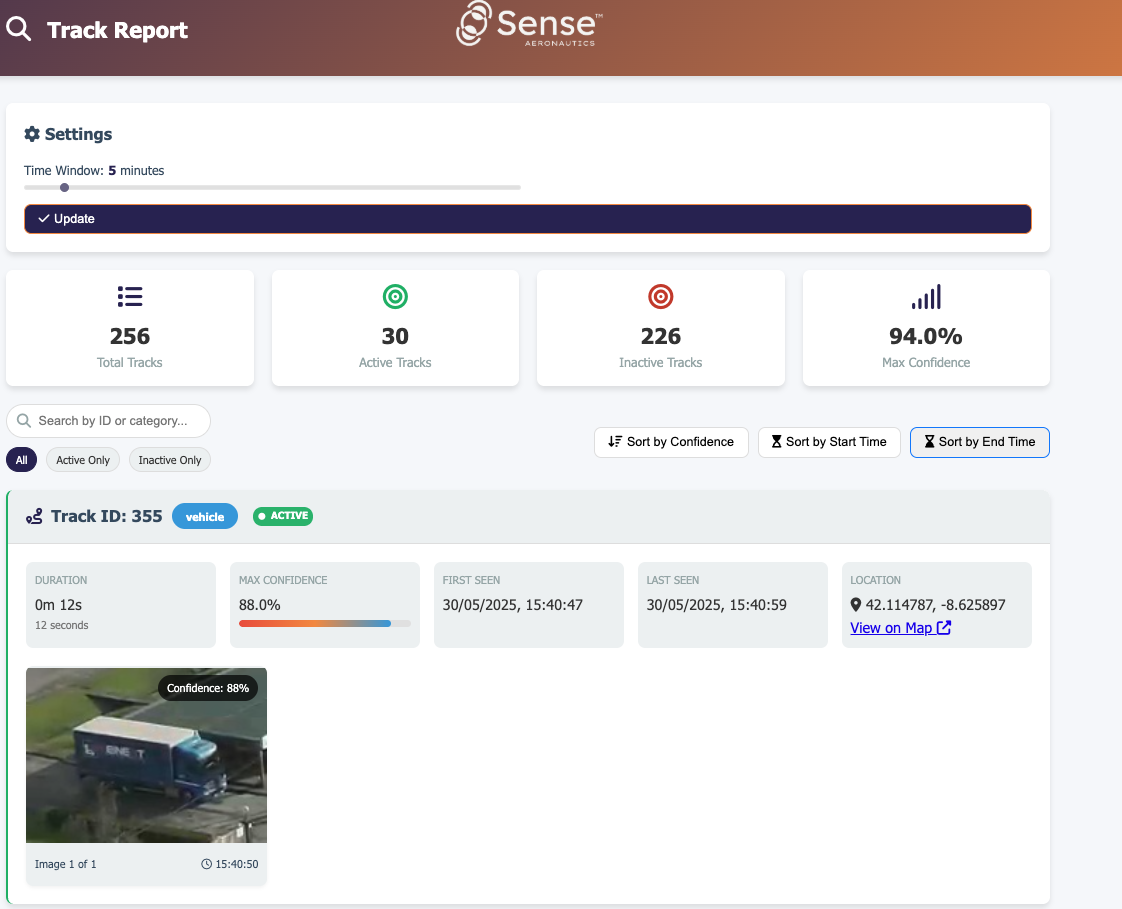

Track report
Monitoring of ongoing processes and past processes is possible through track reports, which provide a summary of targets detected over a defined period of time. The report is available by clicking on the "Track report" button next to the video player during visualization, as well as from the info page, where a list of all available reports from previous processes is updated every time a process finishes.
On the track report window, you can select the desired time frame on the slider and click on Update to re-generate the report at any time while the process is active.
Tracks may be sorted and filtered by different parameters, such as track start and end time, or confidence.
