Telemetry integration

Sense Aeronautics' API allows for the integration of telemetry data to enhance its detection and analysis capabilities and enable the estimation of the geolocation coordinates of detected targets.

Different channels and telemetry formats are supported. They must be configured on source registration, using the POST /stream endpoint. Available options for channel and format are explained in the next sections, as well as the required telemetry data.

Required attitude data

The geolocation algorithm works using the following telemetry metadata:

Field	Unit	Description	Required?*
`sensor_hfov`	degrees	Horizontal field of view of the camera	Always
`sensor_vfov`	degrees	Vertical field of view of the camera	Always
`camera_yaw`	degrees	Horizontal heading the camera is pointing toward	Non-AOD scenarios
`camera_pitch`	degrees	Vertical angle of the camera (negative = downward)	Non-AOD scenarios
`camera_roll`	degrees	Roll angle of the camera	Non-AOD scenarios
`altitude`	metres AMSL	Altitude of the camera above mean sea level	Non-AOD scenarios
`rel_altitude`	metres	Height of the camera above ground level	Non-AOD scenarios
`latitude`	decimal degrees	WGS-84 latitude of the camera	Non-AOD scenarios
`longitude`	decimal degrees	WGS-84 longitude of the camera	Non-AOD scenarios

*All fields are required for full geolocation estimation. However, a reduced telemetry mode is available for AOD scenarios, provided that the sensor horizontal and vertical field of views are provided. The following data is provided in each mode:

Mode	Fields required	Capabilities
Reduced	`sensor_hfov`, `sensor_vfov`	Angular position (azimuth, elevation) and line-of-sight distance
Full geolocation	All fields	Angular position, distance, and GPS coordinates

Message format

Different message formats are supported:

sense: a json message with the fields specified below:

{
    "timestamp": 1707553200.23,
    "latitude": 37.774929,
    "longitude": -122.419418,
    "speed": 12.35,
    "sensor_hfov": 90.0,
    "sensor_vfov": 60.0,
    "camera_pitch": -10.5,
    "camera_yaw": 250.75,
    "camera_roll": 2.3,
    "altitude": 120.5,
    "rel_altitude": 50.0,
    "drone_pitch": -5.67,
    "drone_yaw": 182.45,
    "drone_roll": 3.21
}

dji: the format used by DJI's Flighthub 2 Sync Telemetry Forwarding system. Check supported payloads at DJI official documentation. If you run into problems with telemetry when using the API, contact support@senseaeronautics.com.

Different formats may be agreed upon with Sense Aeronautics to better suit your needs.

Transmission channel

Three channels are available for providing telemetry data to the API: MQTT, websocket and static. These are configured on source registration with the "telemetry_type" key.

MQTT connection

MQTT is a widely extended, lightweight, publish-subscribe messaging protocol. The user must provide the MQTT broker where the drone telemetry is being posted to and provide its ip, port and topic through the POST /stream endpoint. For example:

{
  "alias": "Example MQTT stream",
  "input_url": "rtsp://1.2.3.4:5000",
  "telemetry_cfg": {
    "format": "sense",
    "parameters": {
      "ip": "127.0.0.1",
      "port": 1883,
      "topic": "drone/telemetry/data"
    },
    "type": "mqtt"
  }
}

Note

The broker must be up and running when the process starts. Otherwise, no telemetry information will be ingested by the API.

Websocket connection

A websocket "endpoint" will become available once a Process starts (see input workflow). Each process will be assigned a unique process_uuid, which shall be used to connect to the corresponding websocket endpoint, at:

ws://[product].senseaeronautics.com/process/<process_uuid>/telemetry

So, the overall process to integrate telemetry data through websocket would be:

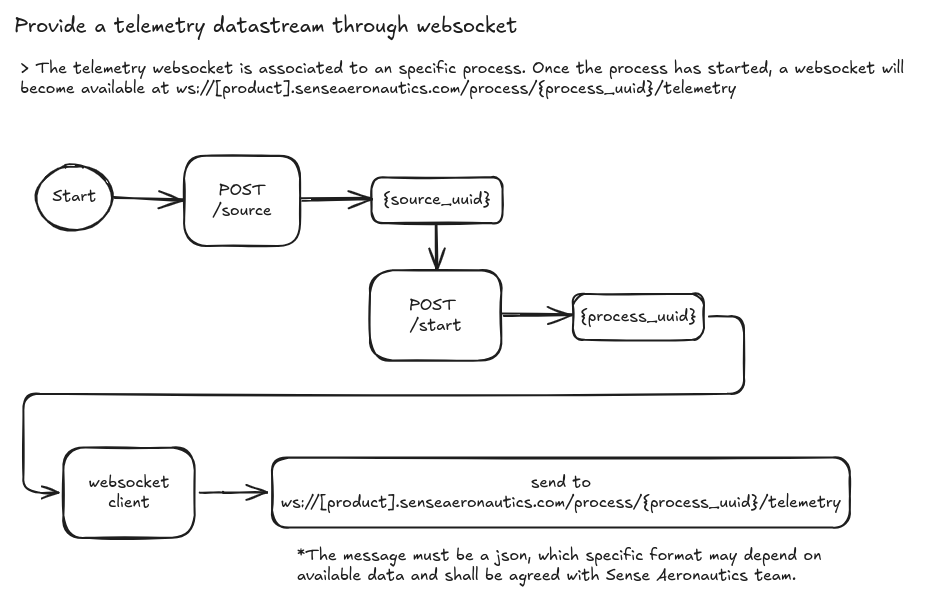

ws-workflow

Websocket streaming scripts

Websockets is a widely extended communication protocol, available in most popular programming languages. Here are examples of how to write to a websocket using Python or Javascript:

python

js

Static telemetry

Static telemetry is designed for cases in which realtime telemetry is not available but relevant data (like camera field of view or location) are known before-hand. It is also useful when metadata is not expected to change, like when using fixed cameras.

Parameters must be provided on source creation like this:

{
  "alias": "Telemetry stream",
  "input_url": "rtmp://192.168.1.10/stream/test",
  "stream_type": "rtsp",
  "telemetry_cfg": {
    "type": "static",
    "format": "sense",
    "parameters": {
      "sensor_hfov": 90.0,
      "sensor_vfov": 60.0,
      "rel_altitude": 30.0,
      "camera_pitch": -45.0,
      "latitude": 41.3851,
      "longitude": 2.1734,
      "altitude": 150.0,
      "camera_yaw": 0.0,
      "camera_roll": 0.0
    }
  }
}

Note

sense is the only supported format for static telemetry
