Tracks list

All tracks are displayed in a card grid, including:

  • Image preview — shows the first frame of the track; hover to see the complete image.
  • ID:
    • Track ID — unique identifier of the track.
    • Category — object type detected.
    • Status — Active if the track is currently visible in the live or recorded video feed; Inactive if the track is no longer visible or the process is finished.
  • Additional columns depending on selected fields (Duration, Confidence, First/Last seen, First/Last location or enhanced fields).

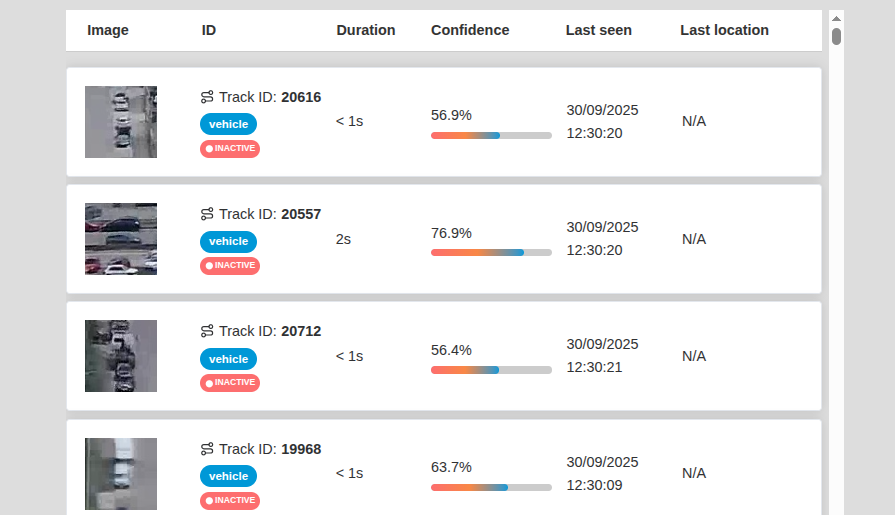

Track report list

Customizing columns

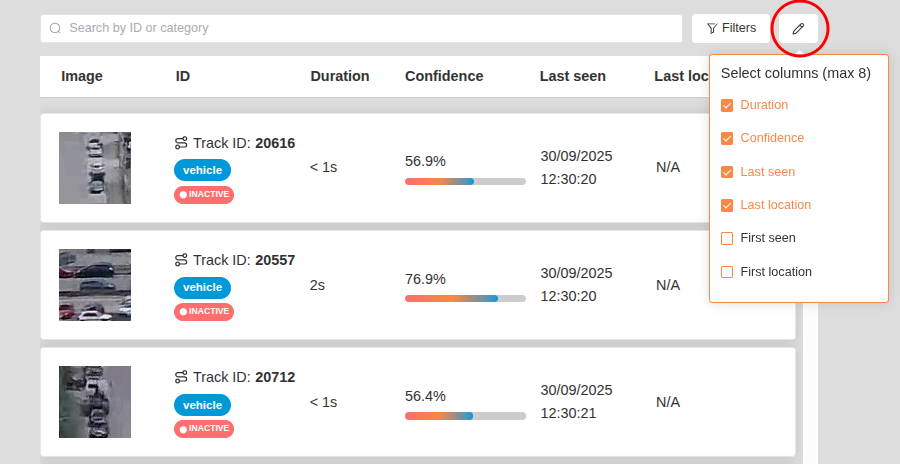

Edit columns button The Edit Columns button allows selecting which fields to display in the grid:

  • Up to a maximum number of 8 columns can be active.
  • Default columns include:
    • Duration. Total time the track was visible in the video feed.
    • Confidence. The detection confidence for the track, expressed as a percentage.
    • First/Last seen. Timestamps indicating when the object first appeared and last appeared in the video.
    • Last/Last location. GPS coordinates (latitude and longitude) where the object was first detected and last detected.
  • Enhanced columns can be added if the report contains extra fields.

Note

Columns do not affect filtering.

Using filters

Filters allow refining the track list:

  • Search by ID or category — quick search bar.

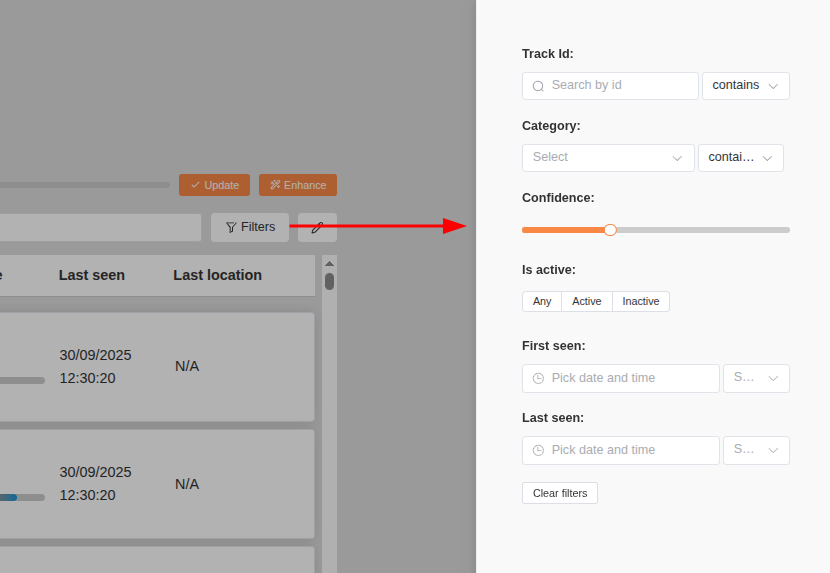

  • Advanced filters panel — can filter by: Filters panel

  • Track ID - text field supporting operators: equal (matches the exact same ID), contains (matches if the ID includes the given text.), is not.

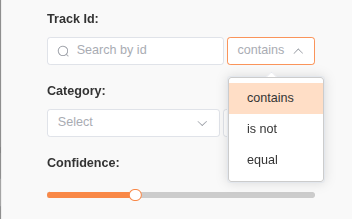

    Filter text options

  • Category - select a category with operators: equal, is not.

  • Confidence - filter by confidence values greater than or equal to the selected threshold.
  • Active status - whether the track is currently active or inactive.

  • First seen / Last seen datetime - date fields supporting operators: after, before, equal, is not.

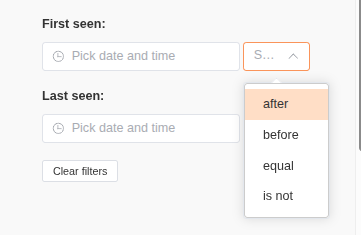

    Filter date options

  • Enhanced fields (if available)

  • Clear filters — resets all active filters.

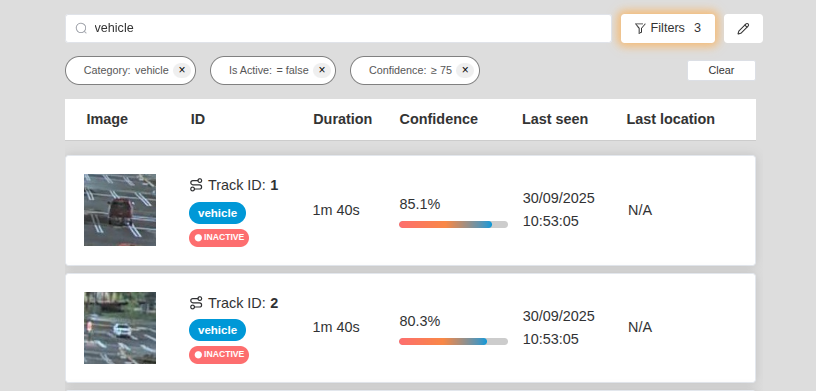

Active filters

Filters can be combined. Active filters are highlighted with a count on the Filters button.

Sorting

Click on any sortable column header to sort tracks:

  • Ascending (↑) or Descending (↓).

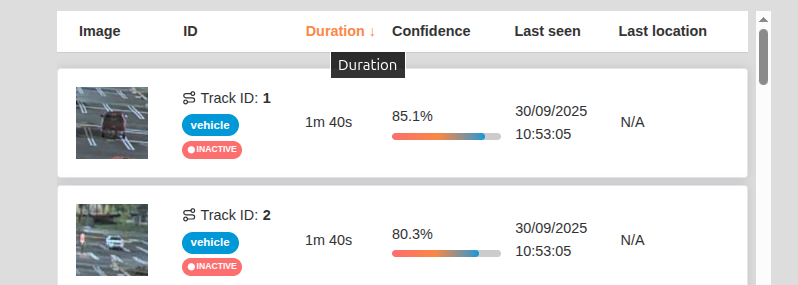

Sort tracks

Sorting works together with filters—filtered tracks are sorted according to selected criteria.

Report info sidebar

The left sidebar displays Track Report Info, giving a quick summary of all tracks in the report.

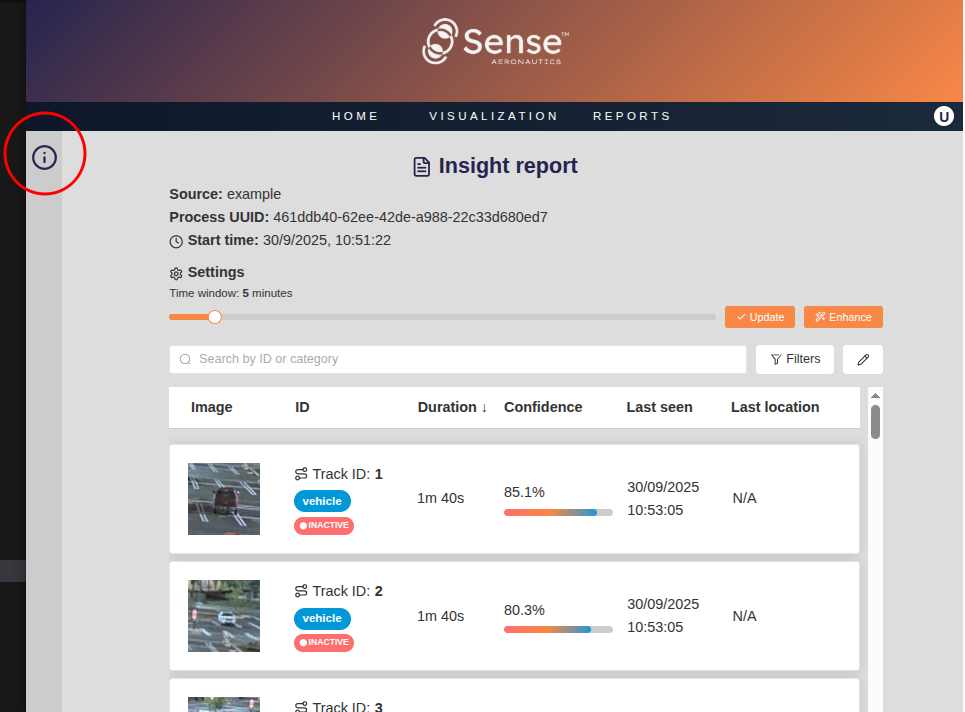

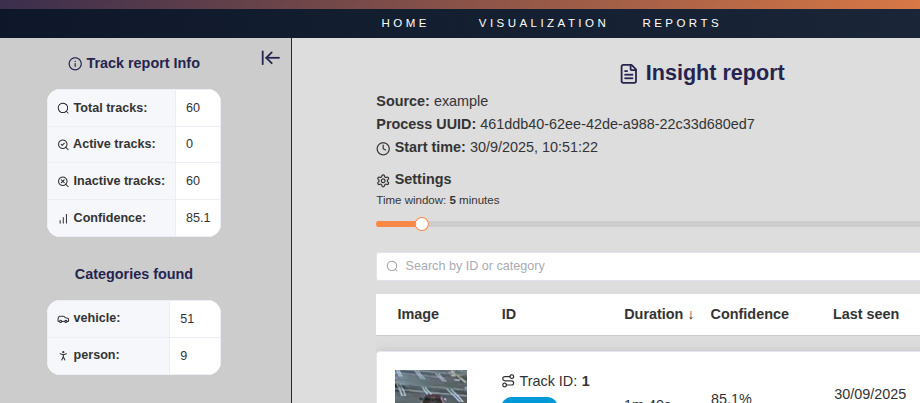

Track report info sidebar button Track report info expanded

Track summary

  • Total tracks — number of tracks detected in this process.
  • Active tracks — currently live tracks.
  • Inactive tracks — tracks that are no longer active.
  • Confidence — highest confidence value among all tracks.

Category counts

A summary panel shows the number of tracks per category: Each category is listed with an icon and count.

This provides a quick overview of the objects detected.
